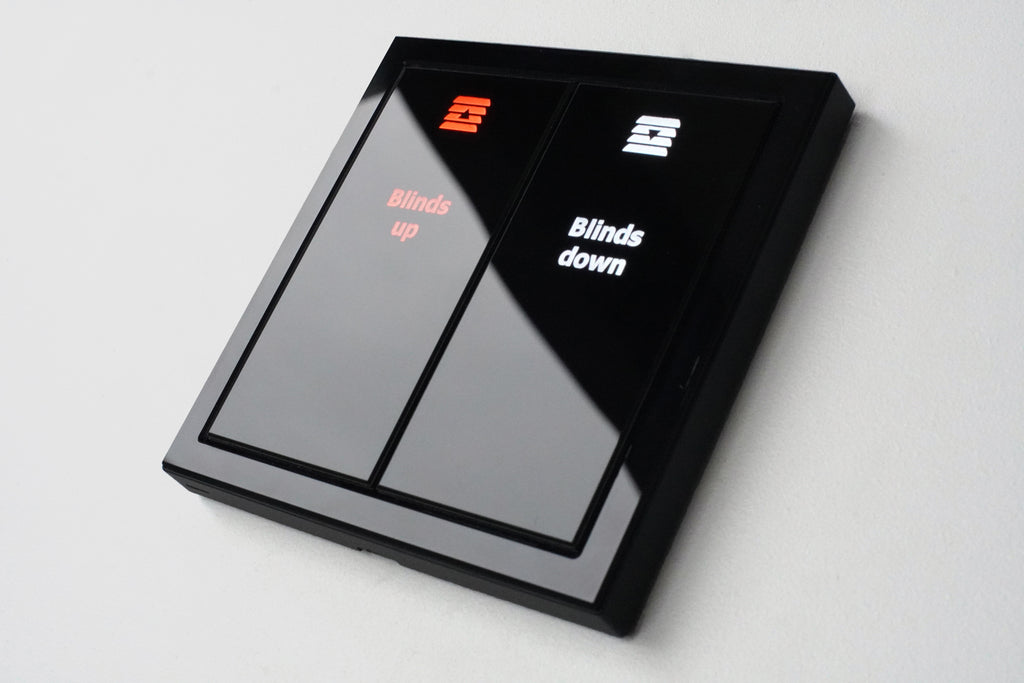

PDR2 | Philips Dynalite Revolution 2 Button Panel

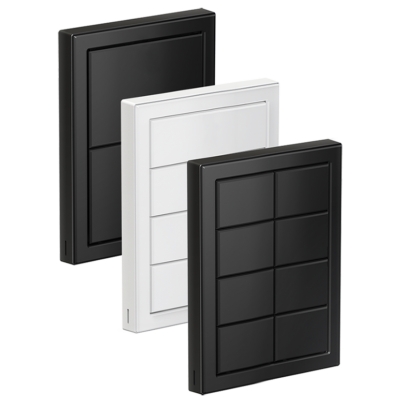

The Dynalite Revolution keypad is a premium wall-mounted user interface designed for intuitive control of lighting and integrated building systems. Available with two, four or eight mechanical buttons, the Revolution range combines tactile operation with programmable RGB button backlighting and a clean contemporary appearance.

Each button can be individually programmed to perform a wide range of local or site-wide functions. Typical applications include selecting lighting scenes, switching or dimming lighting, controlling blinds and curtains, adjusting integrated services and activating programmed system functions.

Built-in field-effect technology detects when a user approaches the keypad and illuminates the button backlights to encourage interaction. Each button’s RGB backlight can be configured to provide clear visual feedback, identify different functions or complement the surrounding interior.

Button labels can be customised using text or commonly recognised icons, with custom engraving available for project-specific applications. The interchangeable button and rim components are available in a variety of finishes, allowing the keypad to suit residential, hospitality and commercial interiors.

The Revolution keypad is supplied as an application module containing the buttons, rim, base and mounting plate. A separate Dynalite DACM communication module provides the network connection and programmable control logic.

A Dynalite DACM communication module is required for operation and is sold separately
