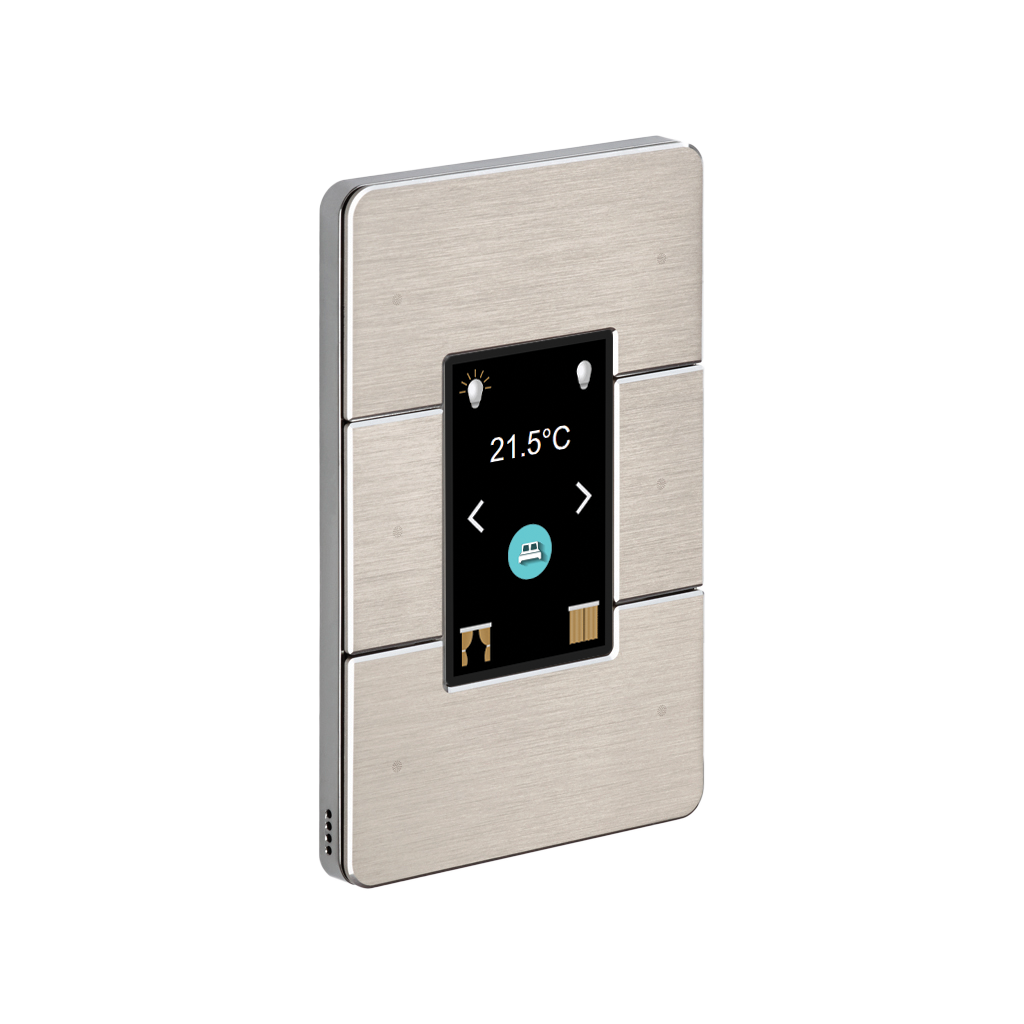

DADPA | Dynalite Antumbra Display Keypad

The DADPA Dynalite Antumbra Display switch keypad is a programmable wall-mounted keypad combining six mechanical buttons with a central colour LCD screen. It can present up to 16 pages of controls and system information, allowing one compact interface to provide access to lighting scenes, levels and other integrated building functions.

The display can show information such as the current scene, lighting channel levels, time and room temperature. Button functions can change as the user moves between pages, making the panel suitable for hotel rooms, meeting spaces, residences and commercial areas that require more functions than a conventional keypad can practically display.

The DADPA connects to the Dynalite system through a separate DACM DyNet communication module. Its buttons can be programmed for local room control or wider site functions, while the built-in temperature and humidity sensors can provide information for compatible HVAC and building-control integration.

Field-effect proximity detection wakes the panel as a user approaches and activates the wall-wash backlight. The application module is available in a wide selection of fascia and rim finishes, allowing the keypad appearance to be coordinated with the surrounding interior. A DACM communication module is required and is sold separately.

All switches require a DACM. DACM not included
