PDRD | Philips Dynalite Revolution Display Panel

PDRDxxE-xxB-x

Contemporary touchscreen user interface.

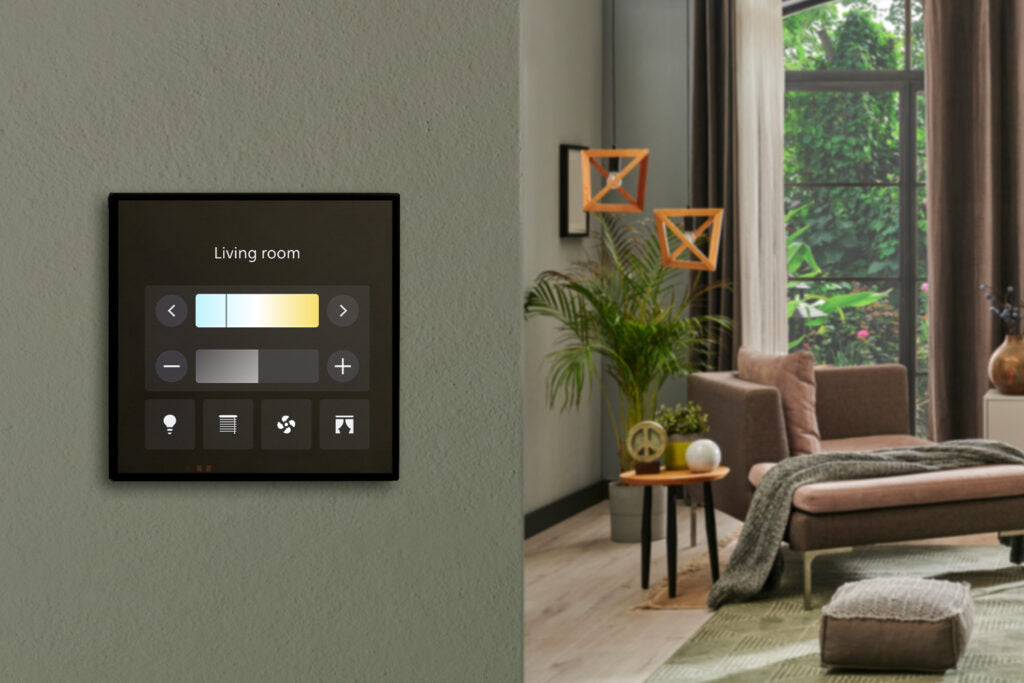

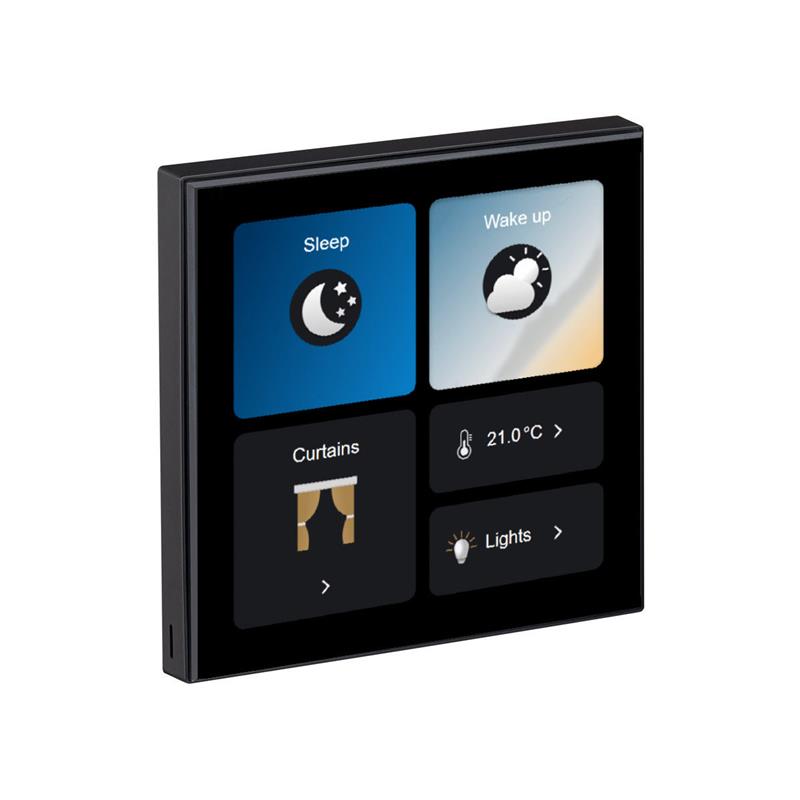

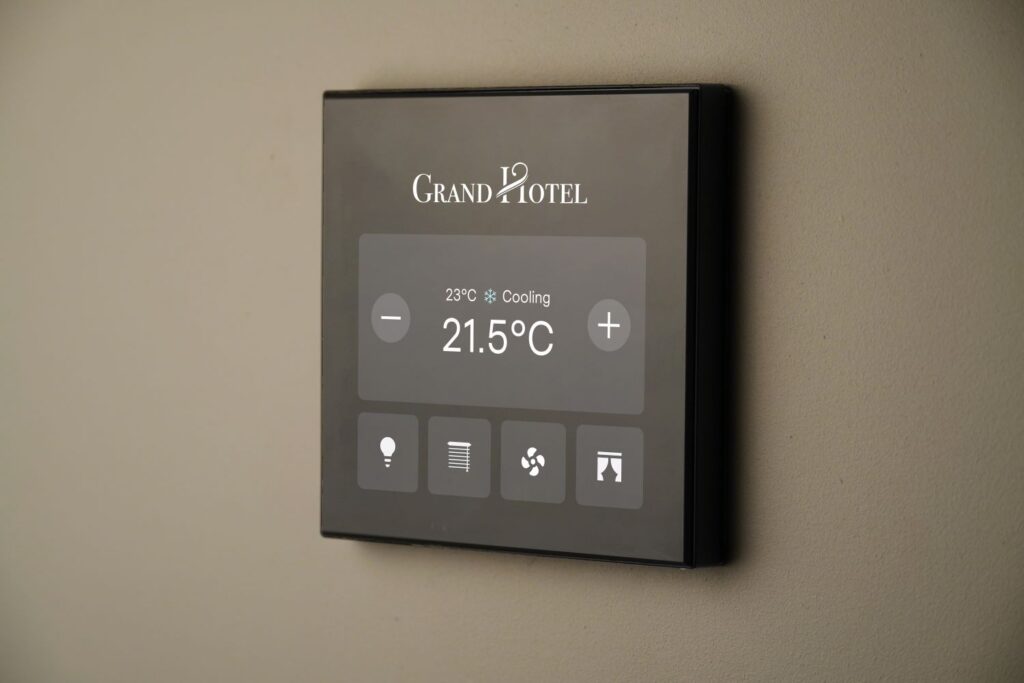

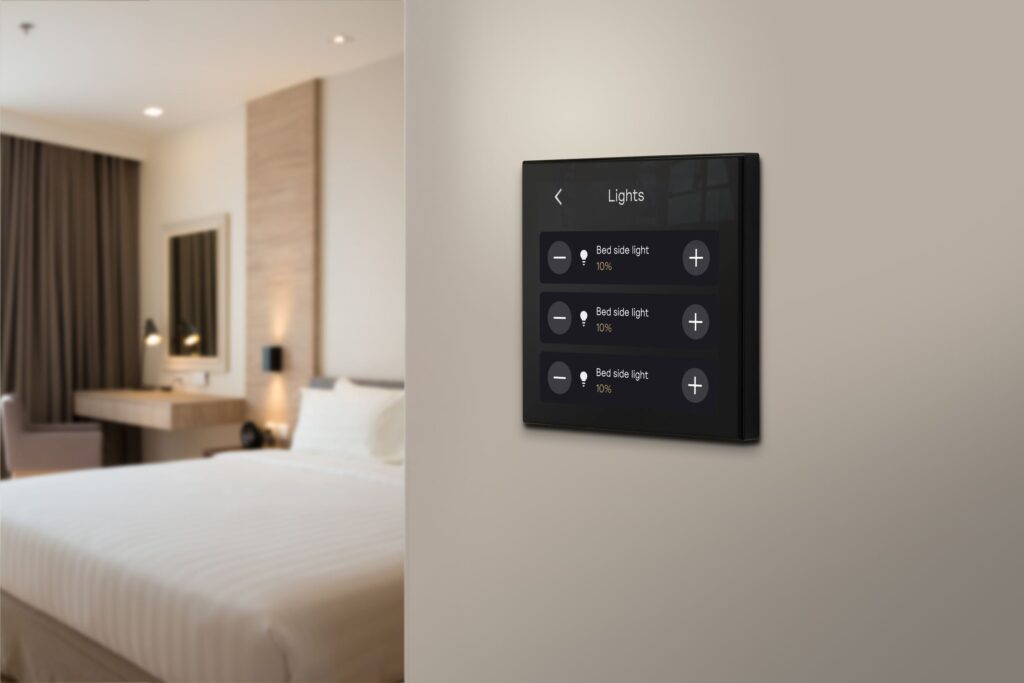

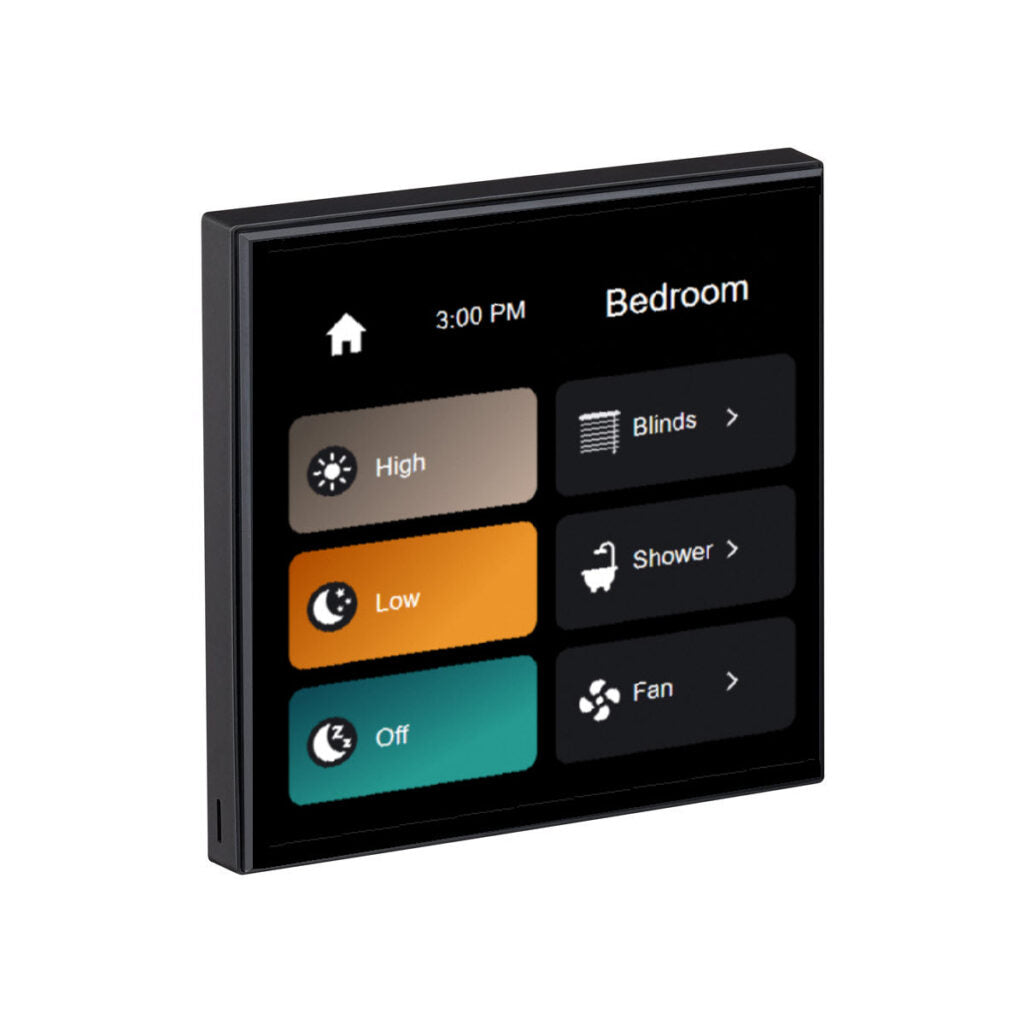

The Dynalite PDRDE Revolution Display is a premium wall-mounted touchscreen interface that provides intuitive control of lighting and other integrated building systems. Its high-resolution, full-colour display presents clear system information and customised controls through a modern, minimalist interface.

Up to 16 individually designed control pages can be created using Dynalite System Builder. The touchscreen can provide lighting scene selection, dimming, blinds and curtain control, climate adjustment, ceiling-fan control, macros, navigation and real-time system information from a single panel.

Built-in proximity detection activates the display as a user approaches and automatically dims it when no longer required. Integrated light, temperature and humidity sensing can provide useful environmental information to the Dynalite system for HVAC control, energy-management strategies and improved occupant comfort.

The PDRDE is supplied as an application module containing the touchscreen and mounting plate. A separate DACM v5 or later communication module provides the DyNet network connection, logic and commissioning functions. The DACM is required for operation and is sold separately.

All switches require a DACM. DACM not included

• Full-colour capacitive touchscreen interface
• High-resolution 720 × 720 pixel display
• Up to 16 customisable control pages
• Configurable 4 × 4 widget-based interface
• Lighting scene selection and dimming control
• Blind, curtain and climate-control functions
• Ceiling-fan and programmable macro controls
• User proximity detection
• Built-in ambient-light, temperature and humidity sensing
• Local and site-wide Dynalite control functions
• Configured graphically using Dynalite System Builder

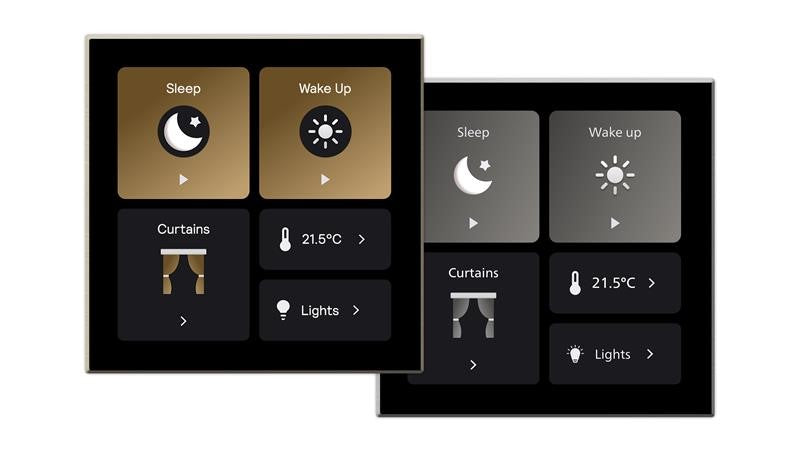

• Available with black or white rim
• Requires a separate DACM v5 or later communication module

Model: PDRDE / PDRDxxE
Product Type: Dynalite touchscreen user interface
Format: European square wall format
Supply Type: DyNet
Supply Voltage: 12-24 V DC, SELV / Class 2
Maximum Supply Current: 120 mA at 12 V DC; 60 mA at 24 V DC
Display Type: a-Si TFT LCD capacitive touchscreen
Display Resolution: 720 x 720 pixels
Viewable Area: 72 x 72 mm
Colour Depth: 16.7 million colours
Viewing Angle: 80°
Control Pages: Up to 16 programmable pages
Interface Layout: Configurable 4 x 4 widget grid
Control Functions: Lighting, dimming, drapery, climate, ceiling fans, macros and page navigation
Proximity Detection Range: Approximately 10 cm
Temperature Sensor Range: 5°C to 40°C
Temperature Sensor Accuracy: ±1°C
Environmental Sensors: Ambient light, temperature and humidity
Communication Port: 1 x RS-485 through the required DACM communication module
Supported Protocol: DyNet
Service Controls: 1 x service switch on the DACM
Service Indicators: 1 x service LED on the DACM
Dimensions: 88 x 88 x 38 mm fully assembled
Panel Projection: Approximately 10 mm from the finished wall surface
Packed Weight: Application module 0.2 kg; communication module 0.12 kg
Terminal: 1 x 5-way pluggable screw terminal on the DACM
Conductor Size: 0.3-2.5 mm²
Operating Temperature: 0°C to 50°C ambient
Storage and Transport Temperature: -25°C to 70°C ambient
Relative Humidity: Maximum 90% non-condensing
IP Rating: IP40
Installation: Indoor installation only
IEC Overvoltage Category: Category II
IEC Pollution Degree: Degree II
Certifications: CE, RCM, FCC and UKCA
Sustainability: RoHS compliant
Required Communication Module: DACM v5 or later, sold separately
