PA6BPA-WW-X
Button Color
Rim Colour
Labelling

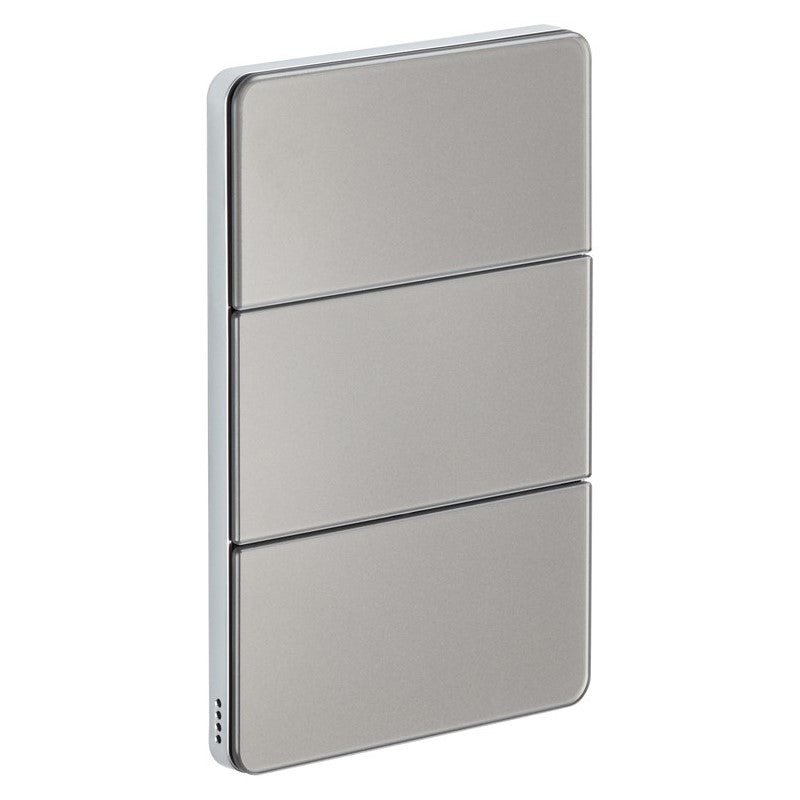

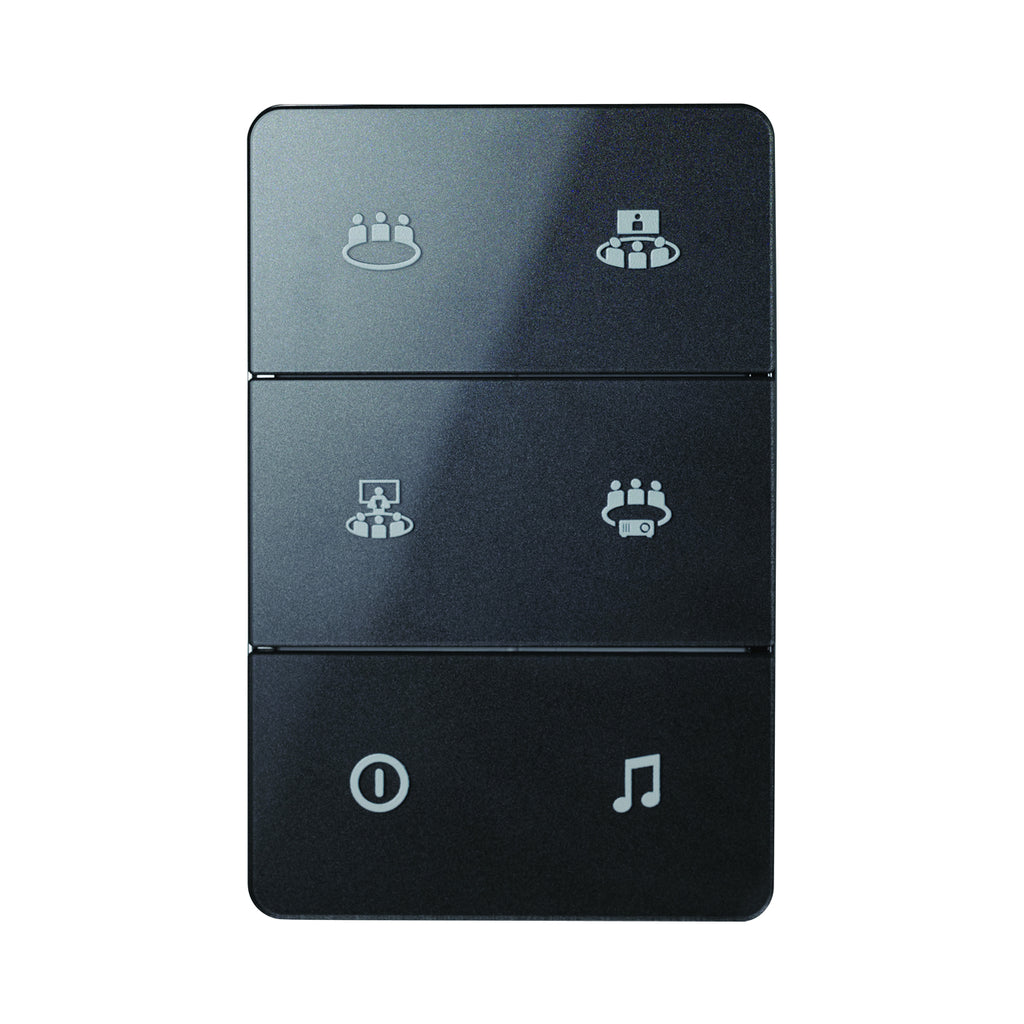

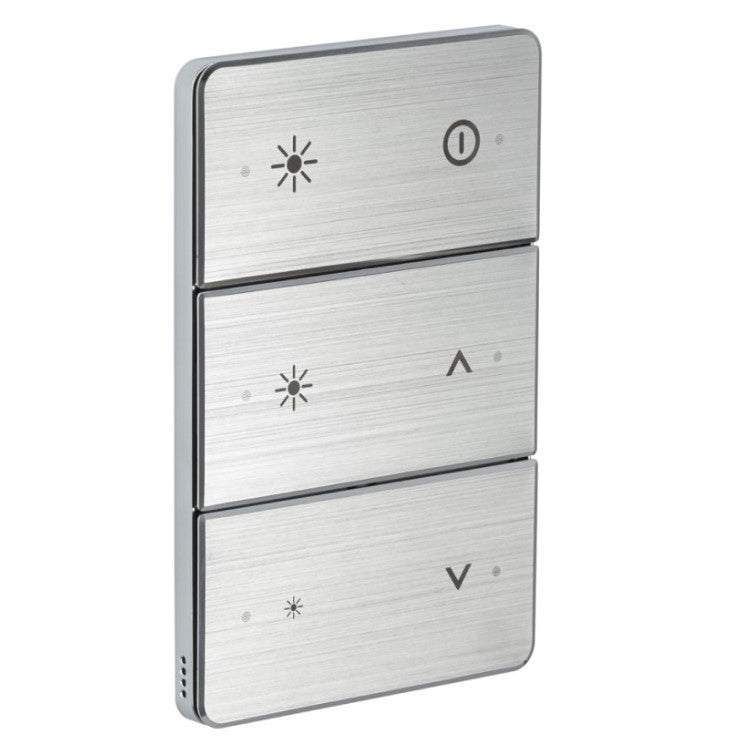

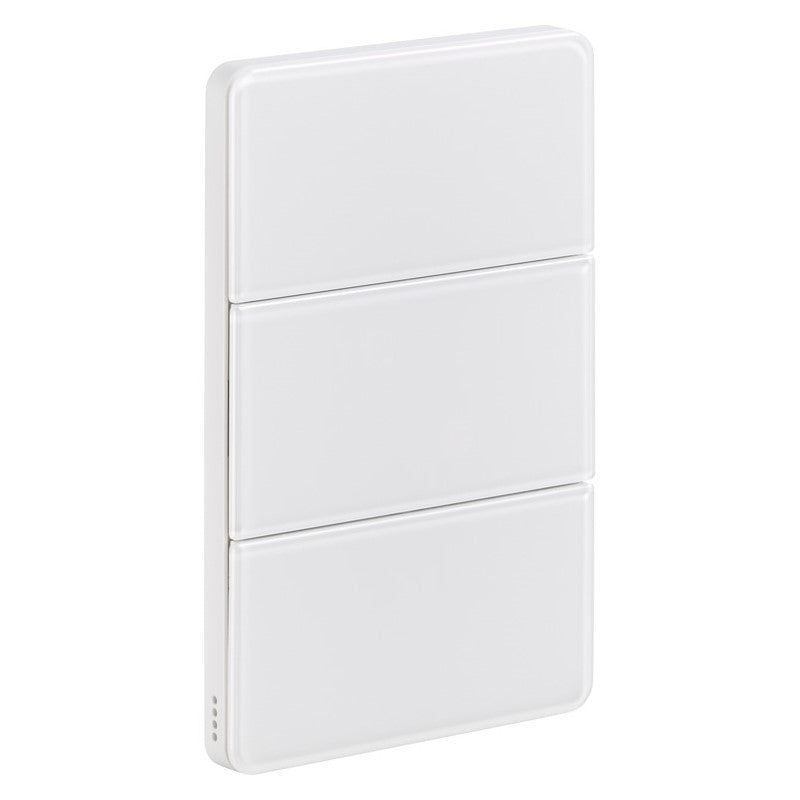

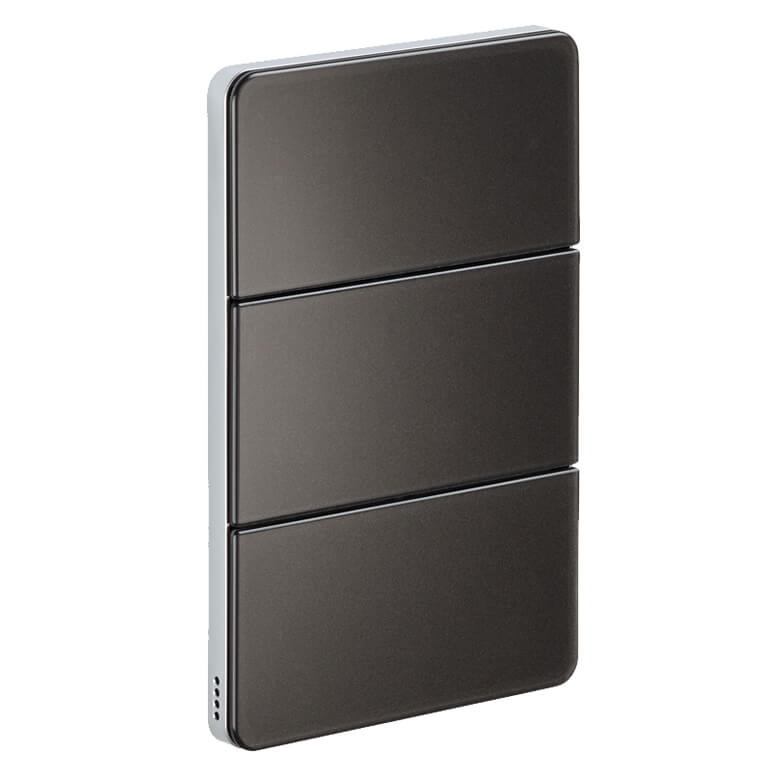

The Dynalite AntumbraButton panel is a premium wall-mounted user interface for Philips Dynalite lighting control systems. It gives users simple scene and function control through large mechanical buttons, with a clean architectural finish suited to homes, hotels, offices, meeting rooms and commercial spaces.

AntumbraButton panels are available in 2, 4 and 6 button layouts, making them flexible enough for basic room control, multi-scene lighting, blinds, fans, all-off functions, entry scenes and other programmed automation actions.

The Antumbra design keeps indicators and sensors hidden behind a smooth front finish. When someone approaches the panel, the built-in field-effect technology can trigger a soft wall-wash lighting effect, helping users find the panel without interrupting the look of the room.

Each panel is made up of an application module and a separate communication module, allowing staged installation and easier project fit-off. Fascia and rim finishes can be mixed and matched, with custom labelling and icons available for a more polished, project-specific result.

All user interfaces require a DACM Comms Module
Features

- Philips Dynalite AntumbraButton user interface panel
- Available in 2, 4 and 6 button configurations
- Large mechanical buttons for clear, tactile control
- Suitable for lighting scenes, blinds, fans and programmed room functions
- Field-effect proximity detection with wall-wash welcome lighting
- Integrated temperature sensor for room temperature monitoring
- Hidden indicators and sensor functions for a clean streamlined finish
- Custom text and icon labelling options available
- Mix-and-match fascia and rim finish combinations
- Designed for use with the separate Antumbra communication module
Specifications

  • Model: AntumbraButton / PAxBPx variant series
  • Product Type: Dynalite wall-mounted button panel user interface
  • Button Options: 2, 4 or 6 button variants
  • Button Type: Large mechanical buttons
  • System Compatibility: Philips Dynalite / DyNet systems when used with a compatible Antumbra communication module
  • Communication Module: Requires Antumbra Communication Module, such as DACMv5, sold separately unless bundled
  • Panel Construction: Two-part Antumbra architecture with application module and communication module
  • Sensor Functions: Field-effect proximity detection, ambient light sensing and integrated temperature sensing
  • Lighting Effect: Wall-wash welcome lighting effect
  • Labelling Options: Custom text and icon labelling available
  • Label Languages: Arabic, Chinese, English, Hebrew, Japanese and Korean options referenced in Dynalite UI brochure
  • Fascia Finish Options: Corona and Flare finish ranges, including White, Magnesium, Silver, Aluminium, Gold, Jet Grey, Prestige, Vintage and Noir depending on selected variant
  • Rim Finish Options: Aluminium, Chrome, Magnesium and White depending on selected variant
  • Available Regions / Formats: EU and NA/ANZ panel variants
  • Ordering Code / 12NC: Varies by selected button count, finish, labelling and EU/NA format
