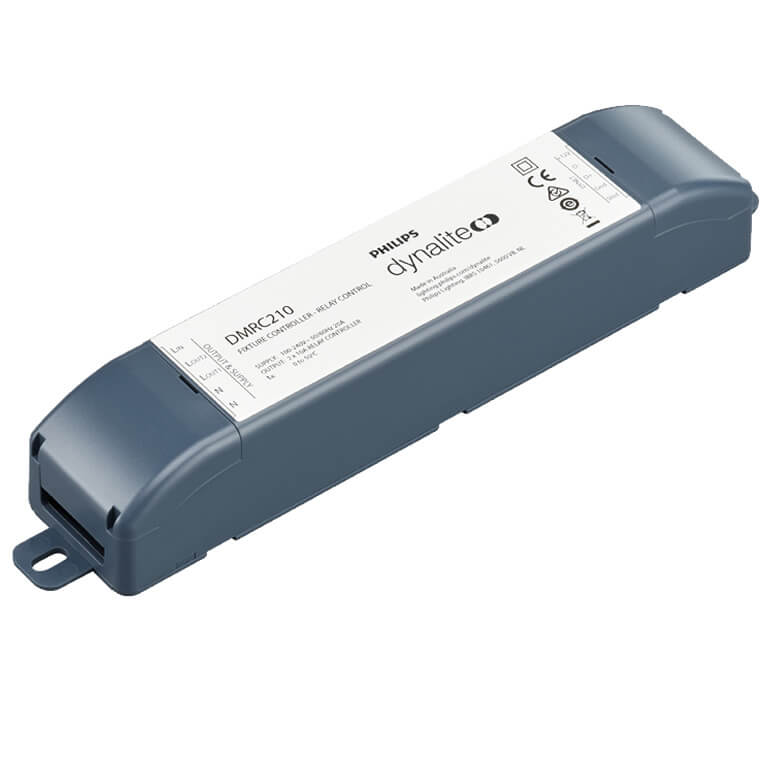

DMRC210

The Dynalite DMRC210 is a compact two-channel relay controller for networked switching of individual luminaires. It provides two independently controlled relay outputs, each rated up to 10 A inductive.

It is suited to fixtures and local equipment requiring two switched mains outputs. The channels can control separate loads or provide staged intensity control when used with compatible tapped lighting drivers.

The DMRC210 connects to the Dynalite DyNet network through RS-485 and supports two DMX receive channels. It also provides a 12 V DC, 150 mA DyNet supply that can power approximately seven compatible user interfaces.

Designed for mounting inside a luminaire gear enclosure, the controller provides local switching without requiring every load to return to a central control panel. Robust relays and online/offline diagnostics support reliable operation and system servicing.
Features

• Two independently controlled relay outputs
• Up to 10 A inductive load per channel
• Maximum total device load of 20 A
• RS-485 DyNet network connection
• Two-channel DMX receive capability
• 12 V DC, 150 mA DyNet supply output
• Compact luminaire gear-enclosure mounting
• Device online and offline diagnostics
Specifications

  • Model: DMRC210
  • Product Type: Two-channel luminaire relay controller
  • Primary Function: Networked mains switching of individual lighting fixtures
  • Supply Type: Single-phase
  • Supply Voltage: 100–240 V AC
  • Supply Current: 20 A
  • Relay Outputs: 2 x switched relay
  • Maximum Channel Load: 10 A inductive
  • Maximum Device Load: 20 A
  • General-Use Load Rating: 10 A per channel at 240 V AC
  • Incandescent Load Rating: 5 A per channel at 240 V AC
  • Electronic Ballast Rating: 3 A per channel at 240 V AC
  • Maximum Inrush Current: 165 A
  • DyNet DC Output: 12 V DC at 150 mA
  • Approximate User Interface Supply: Up to 7 compatible user interfaces
  • Communication Port: 1 x RS-485
  • Supported Protocols: DyNet and DMX receive
  • DMX Receive Channels: 2
  • Diagnostic Function: Device online/offline status
  • Mounting: Luminaire gear-enclosure mounting

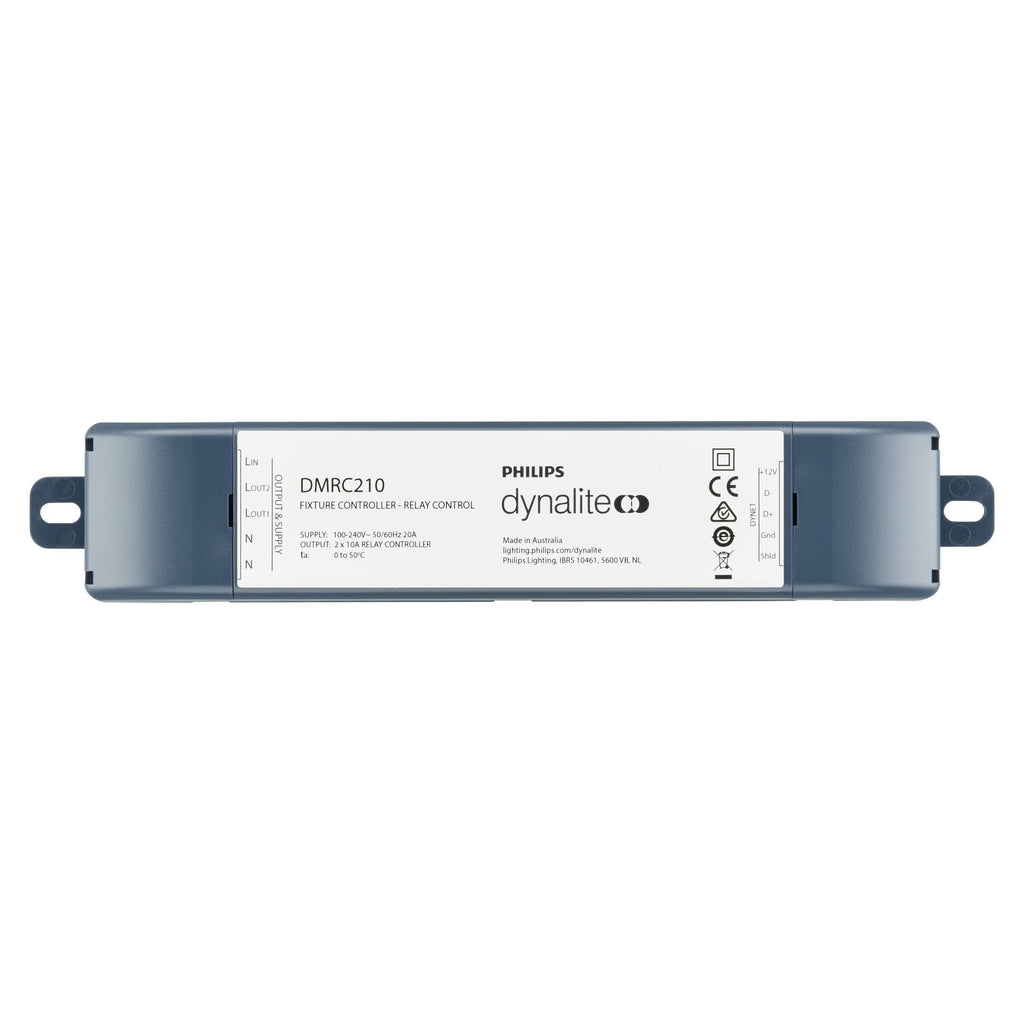

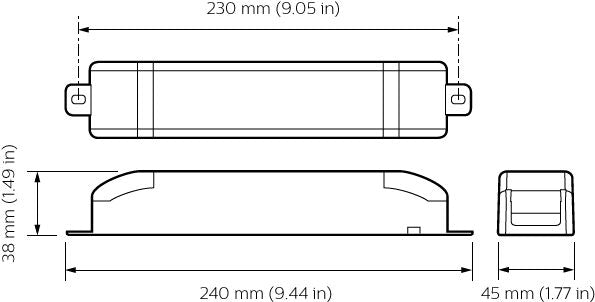

  • Dimensions: 38 x 240 x 45 mm (H x W x D)
  • Packed Weight: 0.19 kg
  • Construction: Double-insulated ABS plastic
  • Network Terminals: 5 x screw terminals
  • Network Conductor Size: 2.5 mm² maximum
  • Supply Terminals: Line in and neutral
  • Load Terminals: Line out 1, line out 2 and neutral
  • Supply and Load Conductor Size: 5 mm² maximum
  • Operating Temperature: 0°C to +50°C ambient
  • Storage/Transport Temperature: -25°C to +70°C ambient
  • Relative Humidity: 0–90% non-condensing
  • IEC Pollution Degree: II
  • Installation: Indoor installation only
  • Certifications: CE, RCM, UKCA and RoHS
  • Ordering Code / 12NC: 913703050009
