DMBC110

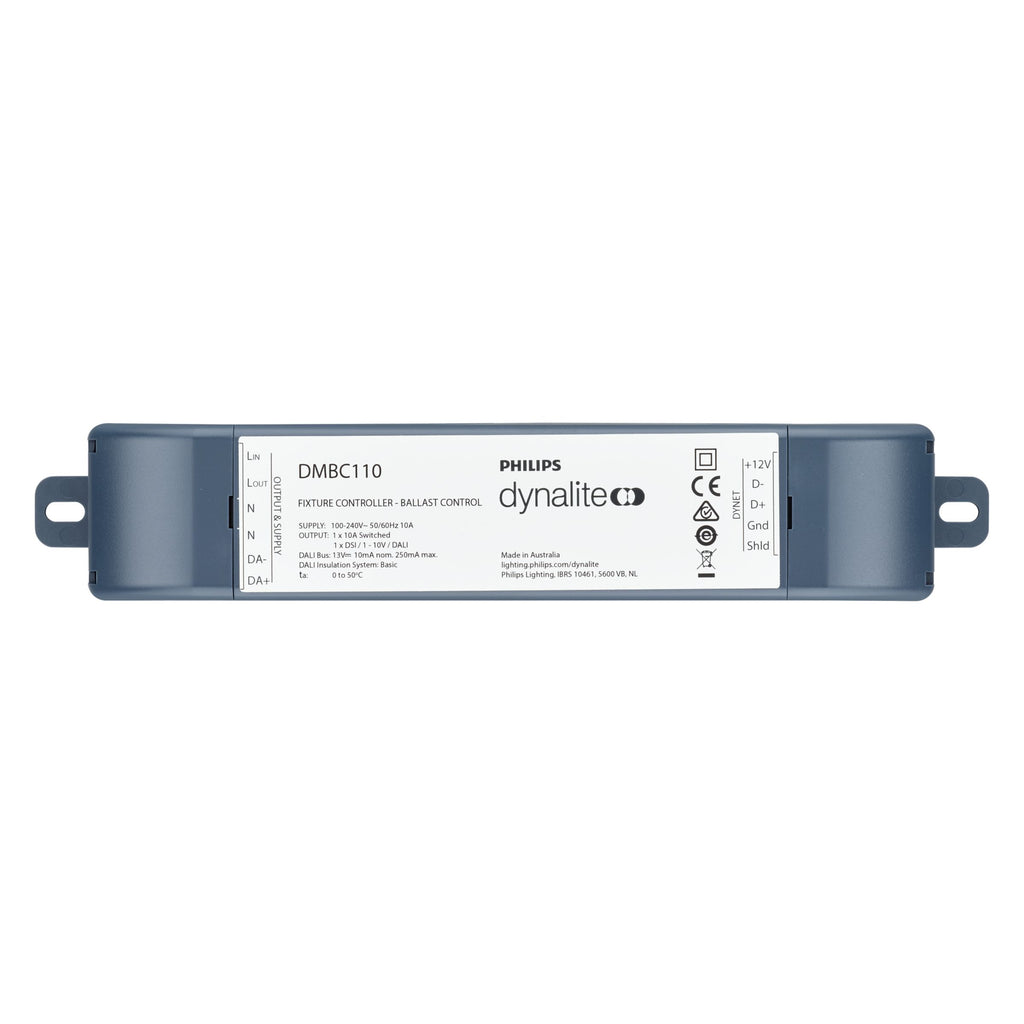

The Dynalite DMBC110 is a luminaire-mounted signal dimmer controller with one switched relay output and one configurable control output. It supports DALI broadcast, DSI and 1–10 V compatible drivers and transformers.

It provides networked control of individual luminaires where local mains switching and driver dimming are required from one compact controller. Typical applications include commercial, retail and architectural lighting fixtures.

The DMBC110 connects to the Dynalite DyNet network through RS-485 and can also receive one DMX channel. Its switched output controls mains power to the fixture, while the signal output controls the connected dimmable driver.

Designed for installation inside a luminaire gear enclosure, the controller provides a compact alternative to locating every lighting-control channel in a central switchboard. Device online and offline status supports system monitoring and fault diagnosis.
Features

• One 10 A switched relay output
• Selectable DALI broadcast, DSI or 1–10 V control
• Supports up to five DALI or DSI drivers
• RS-485 connection to the DyNet network
• One-channel DMX receive capability
• 12 V DC, 120 mA DyNet supply output
• Compact luminaire gear-enclosure mounting
• Device online and offline diagnostics
Specifications

  • Model: DMBC110
  • Product Type: Luminaire-mounted signal dimmer controller
  • Primary Function: Mains switching with DALI broadcast, DSI or 1–10 V driver control
  • Supply Type: Single-phase
  • Supply Voltage: 230 V AC ±14%
  • Supply Current: 10 A
  • Switched Output: 1 x relay output
  • Maximum Switched Load: 10 A inductive
  • General-Use Load Rating: 10 A at 240 V AC
  • Electronic Driver Load Rating: 3 A at 240 V AC
  • Maximum Inrush Current: 165 A
  • Control Output: 1 x selectable DALI broadcast, DSI or 1–10 V channel
  • DALI/DSI Output Voltage: 12 V DC
  • DALI/DSI Guaranteed Current: 10 mA
  • DALI/DSI Maximum Current: 250 mA
  • Maximum DALI/DSI Drivers: 5
  • 1–10 V Output: 20 mA current sink or 10 mA source
  • DyNet DC Output: 12 V DC at 120 mA
  • IEC Overvoltage Category: III
  • Communication Port: 1 x RS-485
  • Supported Protocols: DyNet and DMX receive
  • DMX Receive Channels: 1
  • Diagnostic Function: Device online/offline status
  • Mounting: Luminaire gear-enclosure mounting

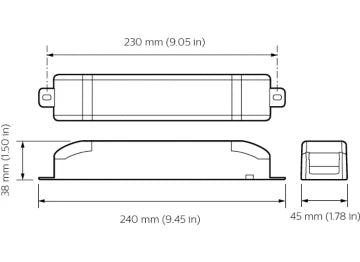

  • Dimensions: 38 x 240 x 45 mm (H x W x D)
  • Packed Weight: 0.19 kg
  • Construction: Polycarbonate enclosure
  • Network Terminal: 1 x 5-way pluggable screw terminal
  • Network Conductor Size: 1.5 mm² maximum
  • Supply Terminals: Line in and neutral
  • Output Terminals: Line out and neutral
  • Supply and Output Conductor Size: 5 mm² maximum
  • Operating Temperature: 0°C to +50°C ambient
  • Storage/Transport Temperature: -25°C to +70°C ambient
  • Relative Humidity: 0–90% non-condensing
  • IEC Pollution Degree: II
  • Installation: Indoor installation only
  • Certifications: CE, RCM, UKCA and RoHS
  • Ordering Code / 12NC: 913703030009
