DLLI8I8O | 8 x Dry Contact Interface & 8 Indicator driver

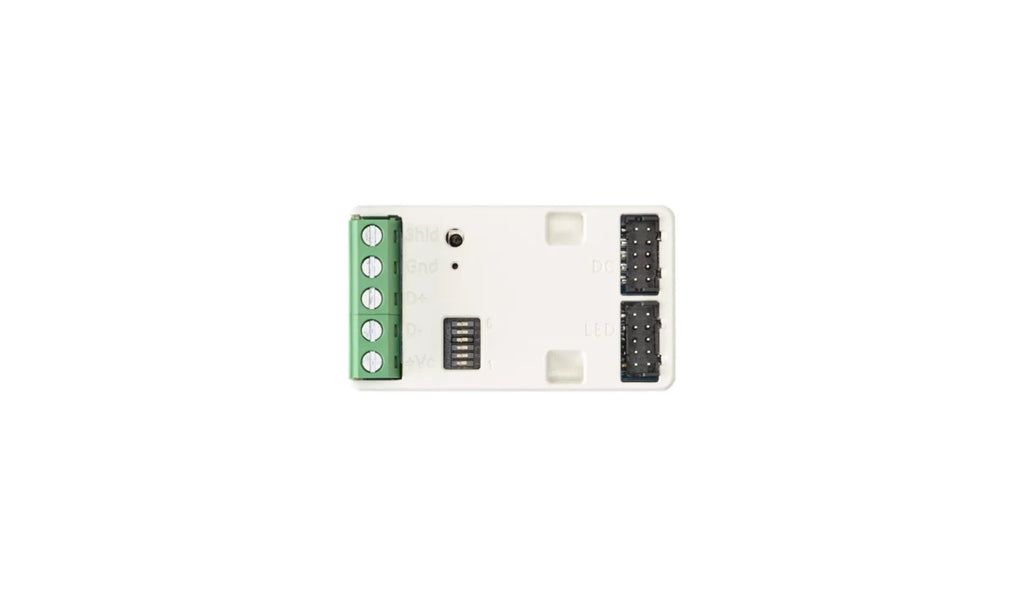

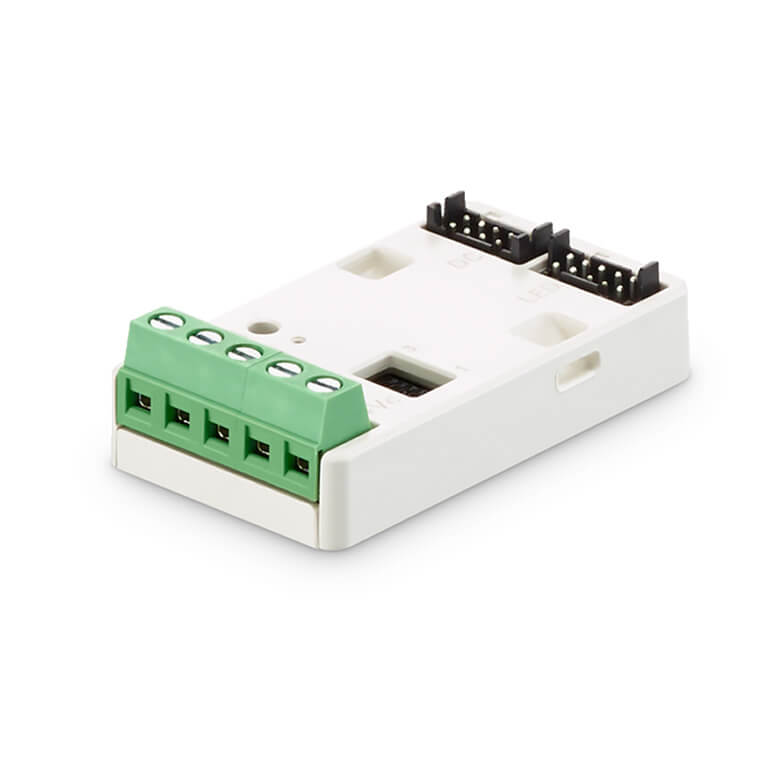

The Dynalite DLLI8I8O is a compact eight-way dry contact interface with eight LED indicator outputs. It connects mechanical switches, electronic switches and other voltage-free contacts directly to a Dynalite DyNet network.

It is commonly used with custom switch panels, third-party user interfaces and equipment that needs to trigger programmed lighting-control actions. The LED outputs can provide visual feedback for the current system status or selected settings.

Each dry contact input and LED output is individually programmable. The DLLI8I8O communicates over RS-485 DyNet and can also operate as an IR blaster when fitted with a compatible third-party infrared LED and commissioned with the required IR command sequences.

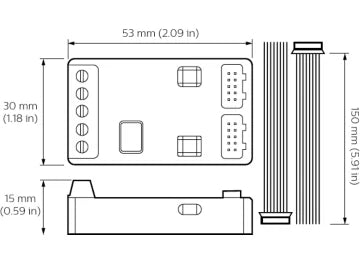

Its compact 53 x 30 x 15 mm enclosure can be installed inside an electrical wall box or behind a switch plate. The interface supports cable runs of up to 20 m between the module and connected dry contacts, providing flexibility when integrating switches across a room or adjoining spaces.
