DGBM200

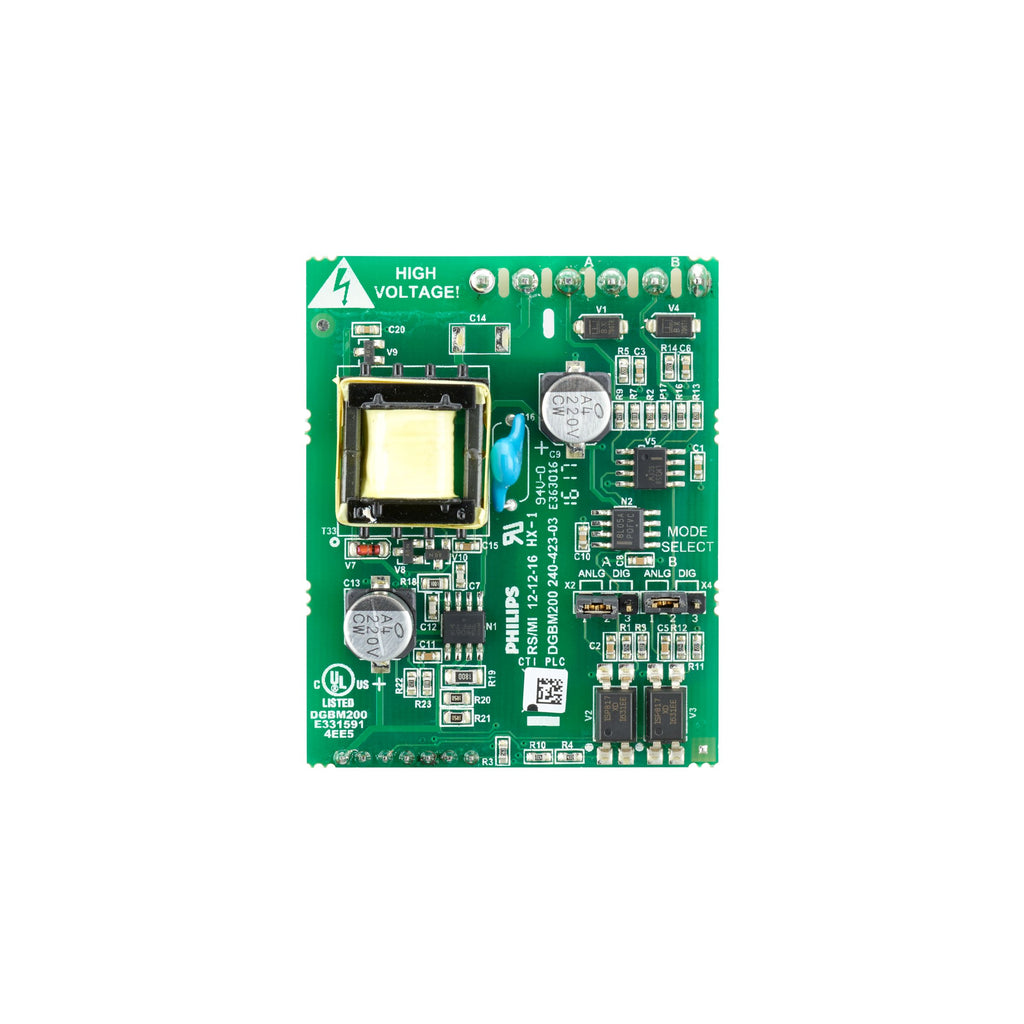

The Dynalite DGBM200 v2 is a two-channel signal dimming module for use exclusively with the DDMC802 multipurpose controller.

Each channel can be configured for DALI Broadcast, DSI or 1–10 V control, allowing the DDMC802 to operate compatible digital lighting drivers and transformers.

When configured for DALI Broadcast, the module can also control compatible DALI 209 tunable-white luminaires. Output protocols are selected during DDMC802 commissioning.

The DGBM200 v2 installs into one DDMC802 module slot and provides two configurable output channels.
Features
  • Two independently configurable signal-control channels
  • Supports DALI Broadcast, DSI and 1–10 V
  • Supports DALI 209 tunable-white broadcast control
  • Installed and configured through the DDMC802
  • Occupies one DDMC802 module slot
  • Not designed for standalone operation
Specifications

  • Model: DGBM200 v2
  • Product Type: Signal dimming control module
  • Compatible Controller: Dynalite DDMC802
  • Output Channels: 2
  • Supported Control Types: DALI Broadcast, DSI and 1–10 V
  • DALI Function: Broadcast control, including compatible DALI 209 tunable-white drivers
  • Module Slots Required: 1
  • Standalone Operation: No
  • Ordering Code / 12NC: 913703261209
