DGRM204 v2 | 2 Channel x 4A Relay, Occupies
DGRM204

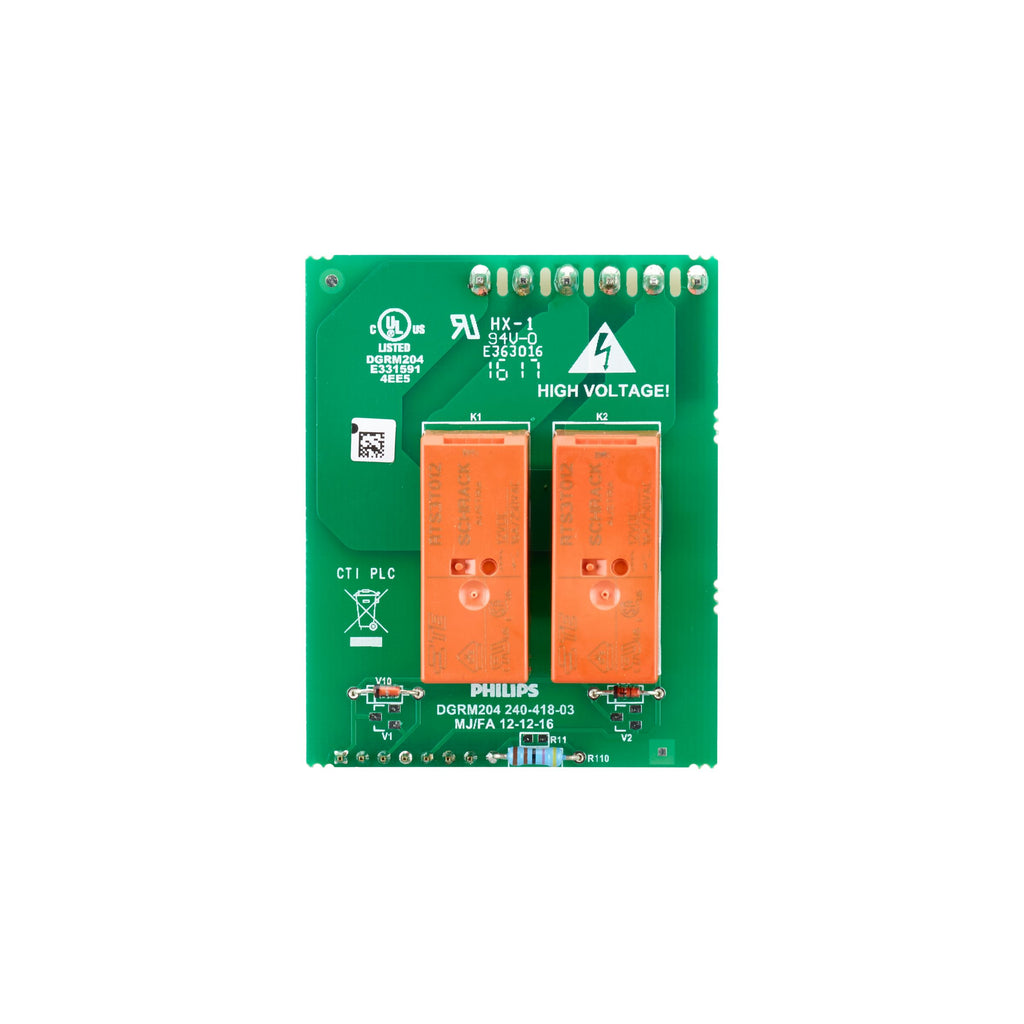

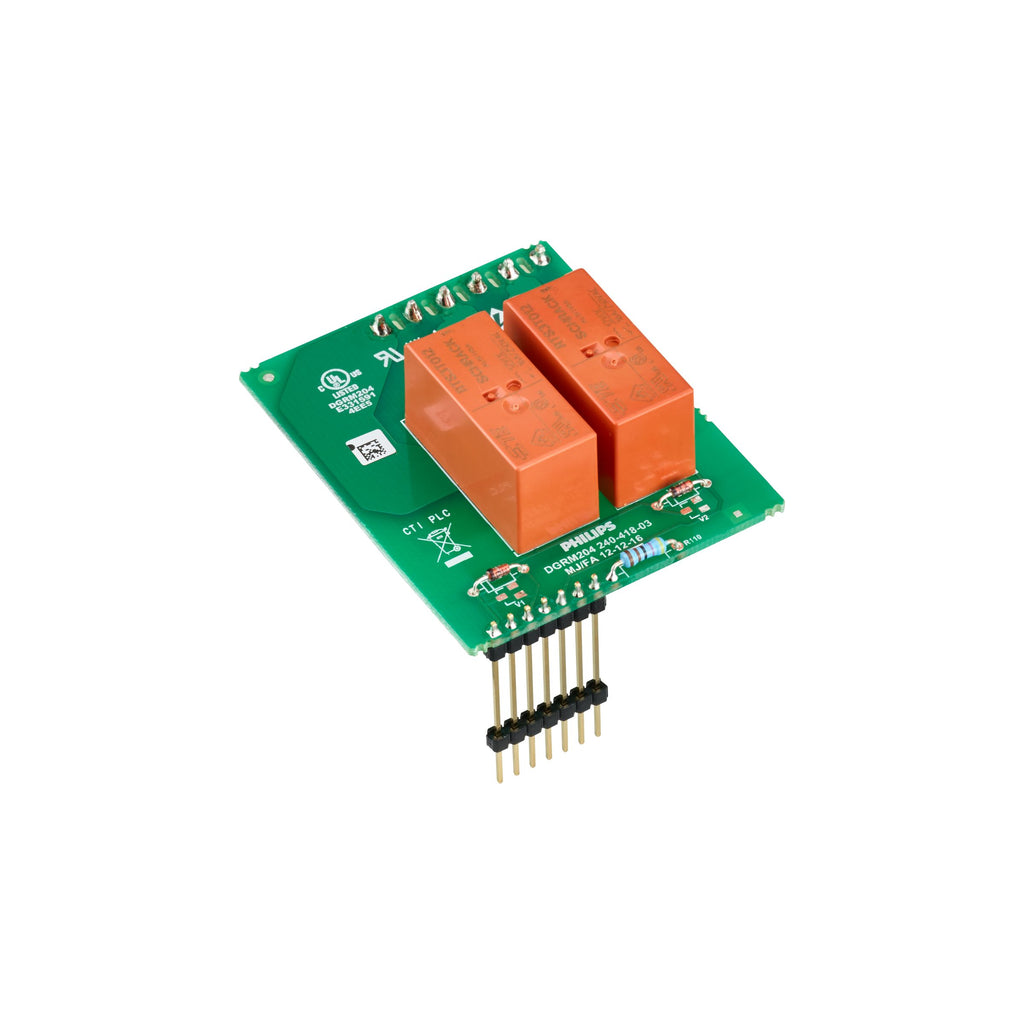

The Dynalite DGRM204 v2 is a two-channel relay module for use exclusively with the DDMC802 multipurpose controller.
It provides two independently controlled switched outputs for compatible lighting and other suitable electrical loads, with a rating of up to 4 A per channel.
The relay channels become part of the DDMC802 and can be operated through Dynalite wall controls, sensors, presets, schedules and programmed automation.
The DGRM204 v2 installs into one DDMC802 module slot. Although each channel is rated at 4 A, the combined module load must not exceed 5 A.
