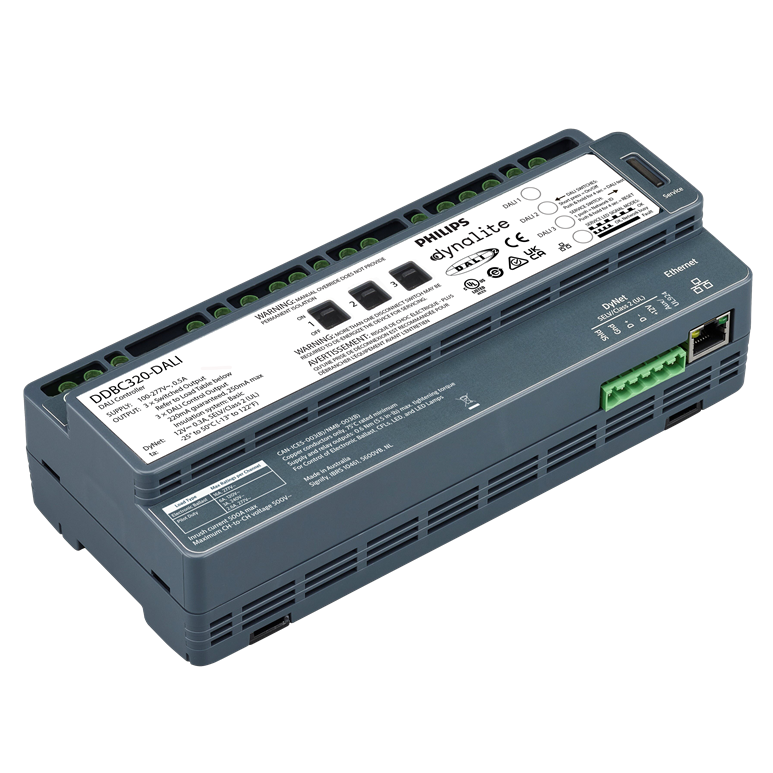

The DDBC320-DALI is a three-line DALI-2 driver controller for larger Dynalite lighting control systems. It is designed for projects that need multiple DALI lines in one DIN rail device, with integrated DALI bus power and driver power management built in.

Each of the three DALI-2 lines can control DALI drivers and compatible Dynalite DALI devices, including DALI lighting, emergency lighting, sensors and user interfaces. It also supports DALI 207 and DALI 209 driver functions, making it suitable for tunable white and RGBWAF applications where supported by the connected drivers.

The controller includes three feed-through switched outputs, allowing each line’s driver supply to be isolated when the connected drivers are dimmed to 0%. This helps reduce standby power use while still keeping the installation integrated into the wider Dynalite system.

For commissioning and service work, the DDBC320-DALI includes line override switches, test buttons, diagnostics, RS-485 DyNet and Ethernet connectivity. It is DIN rail mounted for installation in a distribution board, switchboard or control enclosure.
Features
  • Three DALI-2 control lines in one DIN rail controller

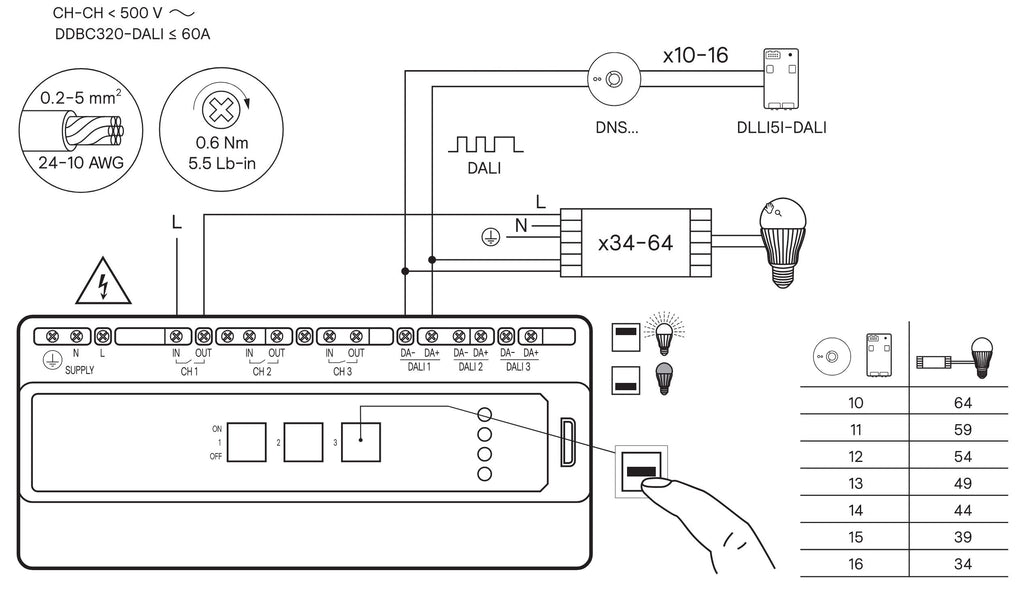

  • Supports up to 64 DALI drivers per line, 192 drivers per device
  • Integrated DALI bus power supply
  • Three feed-through switched outputs for driver power management
  • Compatible with DALI 207 and DALI 209 tunable white / RGBWAF drivers
  • RS-485 DyNet and Ethernet communication ports
  • Supports Dynalite sensors, user interfaces and head-end software
  • Onboard DALI line test buttons and override switches
  • Diagnostic reporting for lamp, driver, runtime and emergency testing
  • Suitable for distribution board, switchboard or enclosure mounting
Specifications

  • Model: DDBC320-DALI
  • Product Type: DALI-2 Driver Controller
  • Supply Type: Single-Phase
  • Supply Voltage: 100-277 VAC
  • Supply Current: 0.5 A
  • DyNet DC Output Voltage: 12 VDC
  • DyNet DC Output Current: 300 mA

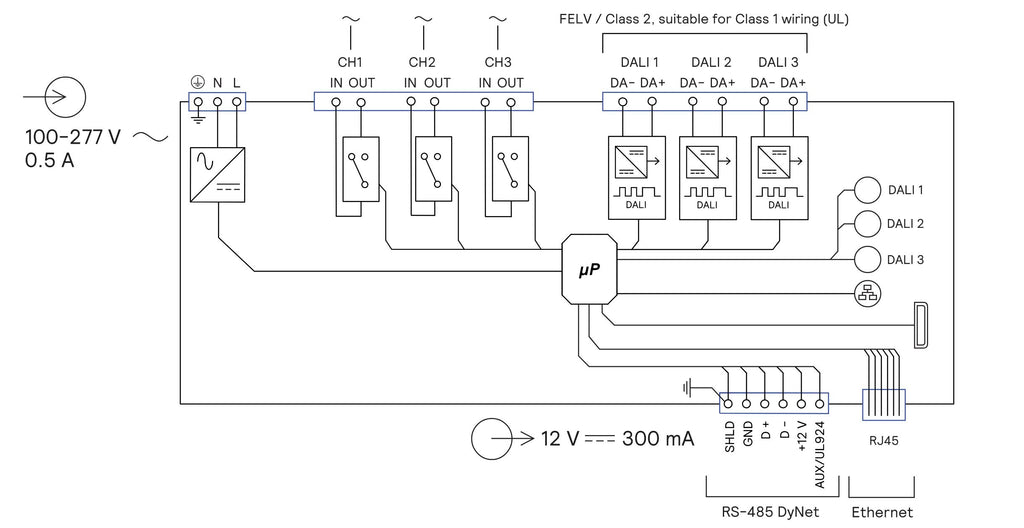

  • Control Channel Outputs: 3 x DALI-2
  • DALI Driver Capacity: Up to 64 drivers per DALI line; up to 192 drivers per device
  • Switched Outputs: 3 x feed-through
  • Maximum Electronic Driver Load: 20 A, 240 VAC CE / 16 A, 277 VAC UL/cUL per DALI line
  • Maximum Total Device Load: ≤ 60 A
  • Pilot Duty Rating: 6 A at 120 VAC; 3 A at 240 VAC; 2.6 A at 277 VAC
  • Inrush Current: 500 A
  • DALI Protection: Electronic self-resettable fuse
  • Maximum CH-CH Voltage: 500 VAC

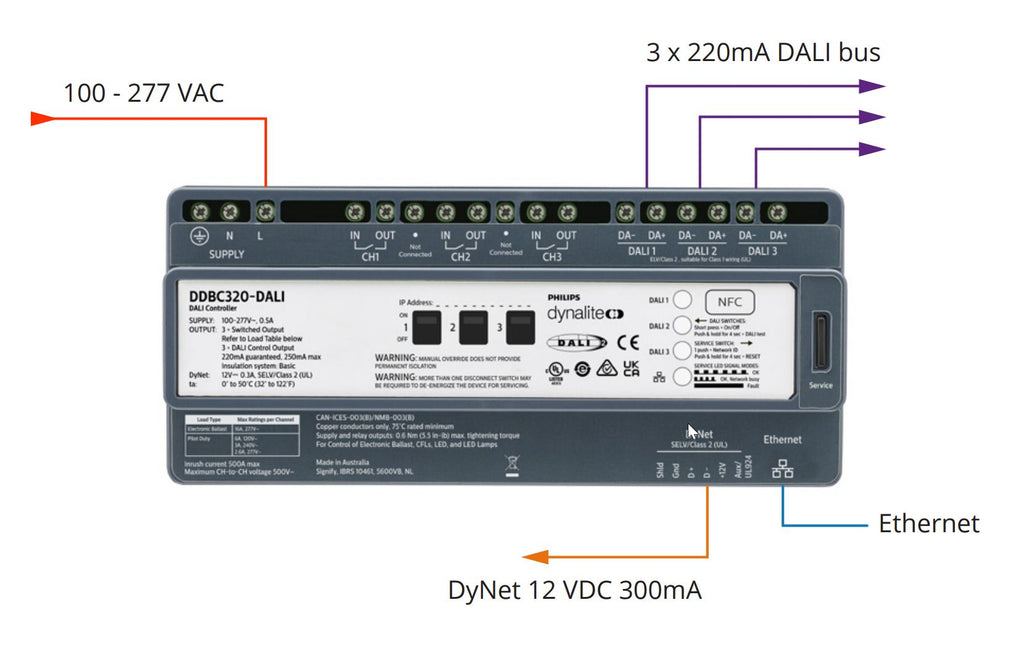

  • Communication Ports: 1 x RS-485; 1 x Ethernet 10/100 baseT
  • Supported Protocols: DyNet; TCP/IP (TCP, UDP), IPv4, IPv6
  • Network Security Layer: TLS 1.2
  • Dry Contact Inputs: 1 x AUX / UL924
  • User Controls: 1 x service switch; 3 x DALI line override switch; 3 x DALI line test button
  • Indicators: 1 x diagnostic LED; 3 x DALI bus status LED; 1 x Ethernet activity LED
  • Diagnostic Functions: Lamp failure reporting; driver failure reporting; driver runtime tracking; switched output runtime tracking; emergency test reporting; device online/offline status
  • Dimensions: 95 x 216 x 64 mm (H x W x D)
  • Packed Weight: 0.6 kg
  • Construction: Polycarbonate DIN rail enclosure (12 unit)
  • Serial Port Terminals: 1 x RJ45; 1 x 6-way pluggable screw terminal
  • Supply Terminals: 1 x 3-way screw terminal (Earth, Neutral, Line)
  • DALI Terminals: 1 x 6-way screw terminal, 3 x (DA-, DA+)
  • Switched Terminals: 1 x 8-way screw terminal, 3 x (IN, OUT), 2 x (N/A)
  • Terminal Conductor Size: Supply, DALI and switched terminals 0.2-5 mm² (#24-10 AWG); serial port conductor 2.5 mm² (#12 AWG) max
  • Operating Temperature: -25° to 50°C
  • Storage/Transport Temperature: -25° to 70°C ambient
  • Relative Humidity: 0 to 90% non-condensing
  • IEC Overvoltage Category: III
  • IEC Pollution Degree: II
  • Installation Note: Indoor installation only
  • Certifications: DALI-2, CE, RCM, UL/cUL, FCC, ICES-003, UKCA, RoHS
  • Ordering Code / 12NC: 913703079709
