The DDBC120-DALI is a compact Philips Dynalite DALI-2 driver controller for projects that need a full DALI universe in a small DIN-rail package. It provides DALI-2 control, an integral DALI bus power supply and DyNet integration for use within a wider Dynalite lighting control system.

It is suited to smaller DALI areas, tenancy upgrades, board-level lighting control and spaces where DALI drivers, sensors and user interfaces need to be brought into the Dynalite network. The controller supports DALI LED fixtures, DALI emergency lighting fixtures, DALI sensors and compatible DALI control devices.

A built-in switched relay can isolate the driver power circuit when connected loads are dimmed to 0%, helping reduce standby consumption. The DALI output is protected by a self-resetting electronic fuse, and the onboard service switch makes basic lamp testing easier during installation and commissioning.

Designed for distribution board installation, the DDBC120-DALI mounts on DIN rail and connects to Dynalite DyNet over RS-485. It is a practical choice where a single DALI-2 universe and one switched lighting circuit are required.
Features

- 1 x DALI-2 control channel for a single DALI universe
- Integral DALI bus power supply for simplified board wiring
- 1 x 20A feed-through switched output for driver power management
- Supports compatible DALI drivers, emergency fixtures, sensors and user interfaces
- Supports DALI 207 and DALI 209 tunable white drivers
- DyNet integration over RS-485 for use in Philips Dynalite systems
- DALI auto-enumeration for easier driver setup and network self-repair
- Self-resetting DALI port protection against overload or short circuit conditions
- Onboard service switch for full-brightness or flash testing
- DIN-rail mounted 6-module enclosure for distribution board installation
Specifications

  • Model: DDBC120-DALI
  • Product Type: DALI-2 Driver Controller
  • Supply Type: Single-Phase
  • Supply Voltage: 100-240 VAC
  • Supply Current: 0.25 A
  • DyNet DC Output Voltage: 12 VDC
  • DyNet DC Output Current: 120 mA
  • Switched Outputs: 1 x 20 A feed-through
  • DALI Protection: Electronic self-resettable fuse
  • IEC Overvoltage Category: III
  • Serial Ports: 1 x RS-485
  • Supported Protocols: DyNet, DMX Rx
  • DMX Rx Channels: 64
  • Control Channel Outputs: 1 x DALI-2
  • DALI Compatibility: DALI-2 certified and DALI registered drivers only; supports DALI 207 and DALI 209 Tuneable White
  • DALI Output Voltage: 16 VDC
  • DALI Guaranteed Current: 220 mA
  • DALI Maximum Current: 250 mA
  • Maximum DALI Drivers: 64
  • DALI Channel Insulation: Basic
  • Dry Contact Inputs: 1 (AUX)
  • User Controls: 1 x service switch; 1 x switched output channel toggle
  • Indicators: 1 x diagnostic LED
  • Diagnostic Functions: Lamp failure reporting, driver failure reporting, driver runtime tracking, switched output runtime tracking, emergency test reporting, device online/offline status

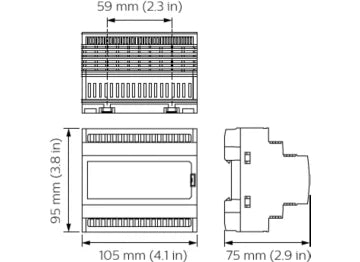

  • Dimensions: 95 x 105 x 75 mm (H x W x D)
  • Packed Weight: 0.45 kg
  • Construction: Polycarbonate DIN rail enclosure (6 unit)
  • Physical Serial Ports: 1 x RJ12; 1 x 6-way pluggable screw terminal
  • Serial Port Conductor Size: 2.5 mm² (#12 AWG) max
  • Supply Terminals: 3 x screw terminal: Line, Neutral, Earth
  • Supply Terminal Conductor Size: 5 mm² (#10 AWG) max
  • Control Terminals: 1 x 2-way screw terminal
  • Control Terminal Conductor Size: 5 mm² (#10 AWG) max
  • Relay/Loop Terminals: 4 x screw terminal: Loop IN, Loop OUT, Relay IN, Relay OUT
  • Relay/Loop Terminal Conductor Size: 5 mm² (#10 AWG) max
  • Operating Temperature: -20° to 50°C ambient
  • Storage/Transport Temperature: -25° to 70°C ambient
  • Relative Humidity: 0 to 90% non-condensing
  • IEC Pollution Degree: II
  • Installation Note: Indoor installation only
  • Certifications: CE, RCM, UL/cUL, FCC, ICES, UKCA, RoHS, DALI-2, IEC62386
  • Ordering Code / 12NC: 913703685109
