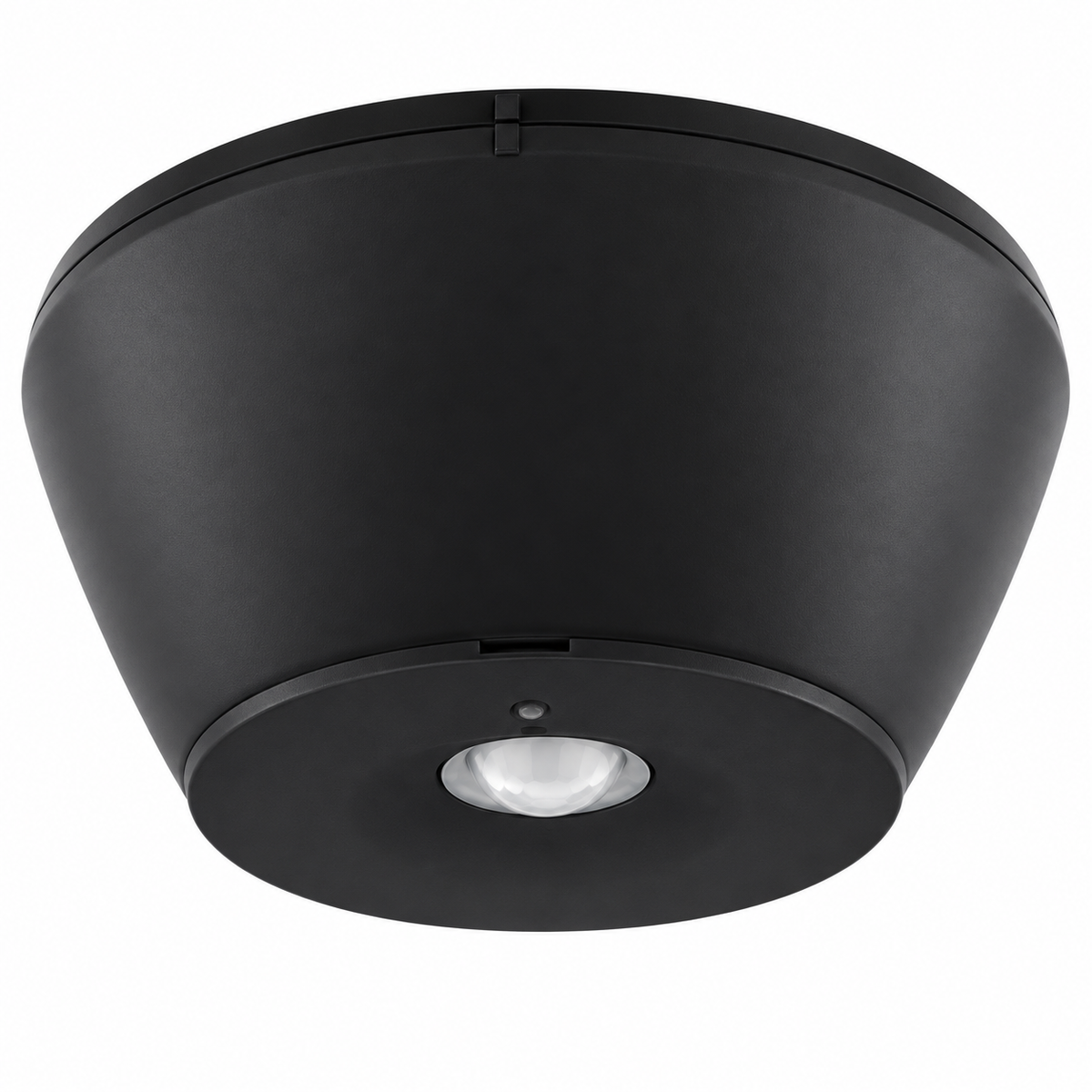

Dynalite DNS360LB-CS-PIR-DALI-RAL9005 ceiling sensor in black – digitally recoloured product image

DNS360LB-CS-PIR-DALI-RAL9005 | Dynalite 360° DALI Ceiling Sensor – Black RAL9005

Skip to product information
Dynalite DNS360LB-CS-PIR-DALI-RAL9005 ceiling sensor in black – digitally recoloured product image
  • Dynalite DNS360LB-CS-PIR-DALI-RAL9005 ceiling sensor in black – digitally recoloured product image
  • Dynalite DNS360LB-CS-PIR-DALI-RAL9005 ceiling sensor in black – digitally recoloured product image
DNS360LB-CS-PIR-DALI-RAL9005 | Dynalite 360° DALI Ceiling Sensor – Black RAL9005

DNS360LB-CS-PIR-DALI-RAL9005 | Dynalite 360° DALI Ceiling Sensor – Black RAL9005

DNS360LB-CS-PIR-DALI-RAL9005

The Dynalite DNS360LB-CS-PIR-DALI-RAL9005 is a 360° ceiling surface-mount sensor in Black RAL9005, combining PIR motion sensing, ambient light measurement and infrared remote reception for networked lighting control.

  • DALI bus power and communication.
  • Occupancy-based lighting and daylight-responsive control.
  • Compatible RC5 infrared remote reception.
  • Segmented bezel to mask unwanted detection areas.
  • Surface or partially recessed installation.

Finish: Black RAL9005
Signify ordering code (12NC): 913703405009

Manufacturer sensor guide
Features

• 360° PIR motion sensing with ambient light measurement and infrared reception
• DALI network power and communication
• Works with Dynalite DDBC120-DALI and DDBC320-DALI controllers
• Daylight-responsive lighting regulation and daylight harvesting
• RC5 infrared remote support for manual light-level adjustment
• Segmented click-up bezel for masking unwanted detection areas
• Surface or partially recessed mounting with supplied clips or junction box
• Corridor hold links corridor lighting to occupancy in adjacent rooms
• Black RAL9005 polycarbonate enclosure for indoor installation
Specifications

  • Model: DNS360LB-CS-PIR-DALI-RAL9005
  • Product Type: Surface-mount multifunction ceiling sensor
  • Primary Function: 360° PIR motion detection, ambient light detection and infrared reception
  • Supply Type: DALI / FELV
  • Supply Voltage: 9.5–22.5 V DC
  • Supply Current: 5.5 mA
  • DALI Insulation: Basic
  • IEC Overvoltage Category: III
  • Motion Sensor: Quad-element pyroelectric PIR
  • PIR Detection Requirement: At least 4°C temperature difference between the subject and background surfaces
  • Light Detection Range: 5–5,000 lux
  • Communication Port: 1 x DALI
  • User Controls: RC5 infrared remote control and 1 x service switch
  • Receiver Startup Time: Less than 1.2 seconds
  • Indicator: 1 x red motion LED
  • Mounting: Surface or partially recessed ceiling mounting
  • Mounting Substrate Thickness: 3–25 mm
  • Dimensions: 47 x 112 mm (H x diameter)
  • Packed Weight: 0.166 kg
  • Construction: Polycarbonate enclosure
  • Colour: RAL9005 black
  • Terminals: 2 x screw terminal
  • Maximum Conductor Size: 2.5 mm² or 2 x 1 mm²
  • Operating Temperature: 0°C to +45°C ambient
  • Storage/Transport Temperature: -25°C to +70°C ambient
  • Relative Humidity: Up to 90%, non-condensing
  • IEC Pollution Degree: II
  • IP Rating: IP20
  • Installation: Indoor installation only
  • Certifications: CE, CB, RCM, UL/cUL, FCC, ISED, UKCA, DALI-2
  • Sustainability: RoHS, REACH, WEEE
  • Ordering Code / 12NC: 913703405009
