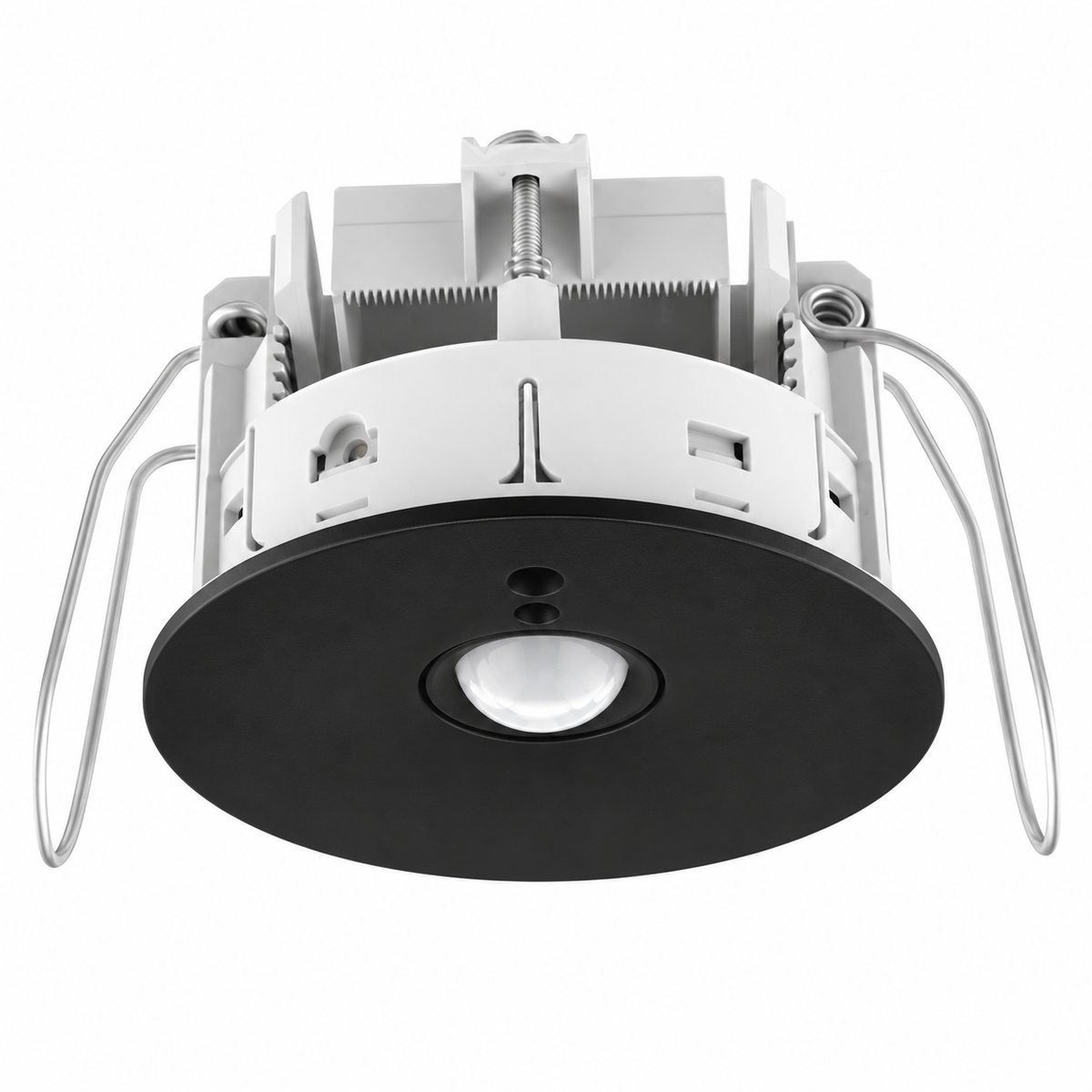

DNS360LB-CR-PIR-DALI-RAL9005 recessed ceiling sensor – Black RAL9005
  • DNS360LB-CR-PIR-DALI-RAL9005 recessed ceiling sensor – Black RAL9005
  • DNS360LB-CR-PIR-DALI-RAL9005 recessed ceiling sensor – Black RAL9005
DNS360LB-CR-PIR-DALI-RAL9005 | Dynalite 360° DALI Recessed Ceiling Sensor – Black RAL9005

DNS360LB-CR-PIR-DALI-RAL9005 | Dynalite 360° DALI Recessed Ceiling Sensor – Black RAL9005

DNS360LB-CR-PIR-DALI-RAL9005

Multifunction recessed ceiling sensor – 360° PIR motion detection, ambient light sensing and DALI network communication in Black RAL9005.

The Dynalite DNS360LB-CR-PIR-DALI-RAL9005 combines occupancy detection and ambient light measurement in a compact, low-profile ceiling sensor. Powered directly by the DALI bus, it works with Dynalite DDBC120-DALI and DDBC320-DALI controllers for responsive lighting control.

Daylight harvesting and occupancy-based operation help reduce unnecessary lighting use. A segmented bezel allows selected detection areas to be masked, while corridor hold can link adjacent spaces. Infrared reception supports network sign-on identification.

Finish: Black RAL9005
Signify ordering code (12NC): 913703404809
Features

• 360° PIR occupancy sensing and ambient light measurement
• Low-profile recessed ceiling installation
• Powered and connected through the DALI bus
• Compatible with Dynalite DDBC120-DALI and DDBC320-DALI controllers
• Daylight harvesting and automatic ambient light regulation
• Segmented bezel masks selected detection areas
• Infrared reception for network sign-on identification
• Corridor hold links lighting to occupancy in adjacent rooms
• IP54 front face when installed to manufacturer instructions
• Black RAL9005 finish
Specifications

  • Model: DNS360LB-CR-PIR-DALI-RAL9005
  • Product Type: Recessed multifunction ceiling sensor
  • Primary Function: 360° PIR motion detection and ambient light measurement; infrared reception for network sign-on
  • Supply Type: DALI / FELV
  • Supply Voltage: 9.5–22.5 V DC
  • Supply Current: 5.5 mA
  • DALI Insulation: Basic
  • IEC Overvoltage Category: III
  • Motion Sensor: Quad-element pyroelectric PIR
  • PIR Detection Requirement: At least 4°C temperature difference between the subject and background surfaces
  • Light Detection Range: 5–5,000 lux
  • Communication Port: 1 x DALI
  • User Controls: RC5 infrared remote control and 1 x service switch
  • Receiver Startup Time: Less than 1.2 seconds
  • Indicator: 1 x red motion LED
  • Mounting: Recessed ceiling mounting
  • Mounting Substrate Thickness: 3–25 mm
  • Dimensions: 41 x 72 mm (H x diameter)
  • Packed Weight: 0.105 kg
  • Construction: Polycarbonate enclosure
  • Colour: Black RAL9005
  • Terminals: 1 x 2-way screw terminal
  • Maximum Conductor Size: 0.2–2.5 mm²
  • Operating Temperature: 0°C to +45°C ambient
  • Storage/Transport Temperature: -25°C to +70°C ambient
  • Relative Humidity: Up to 90%, non-condensing
  • IEC Pollution Degree: II
  • IP Rating: Front face IP54 when installed per manufacturer instructions; enclosure IP20
  • Installation: Indoor installation only
  • Certifications: CE, CB, RCM, UL/cUL, FCC, ISED, UKCA, DALI-2
  • Sustainability: RoHS, REACH, WEEE
  • Ordering Code / 12NC: 913703404809
